MW RoofGen 2

MaxScript roof generator for 3ds Max. Pick a closed spline, set a roof angle, hit Create.

Roof geometry generated by MW RoofGen from spline outlines
About

About MW RoofGen

MW RoofGen 2 generates hip roof geometry from any closed spline outline in 3ds Max. Optional UV generation maps each roof face along its slope: bottom edges sit at V=0, and the UV scale is set by real-world width and height inputs.

How to use

In 3ds Max 2026 or higher, go to Scripting > Run Script... and choose "MW_RoofGen_2_XX.mse" from wherever you saved it.

Platform: 3ds Max (MaxScript). Requires 3ds Max 2026 or higher.

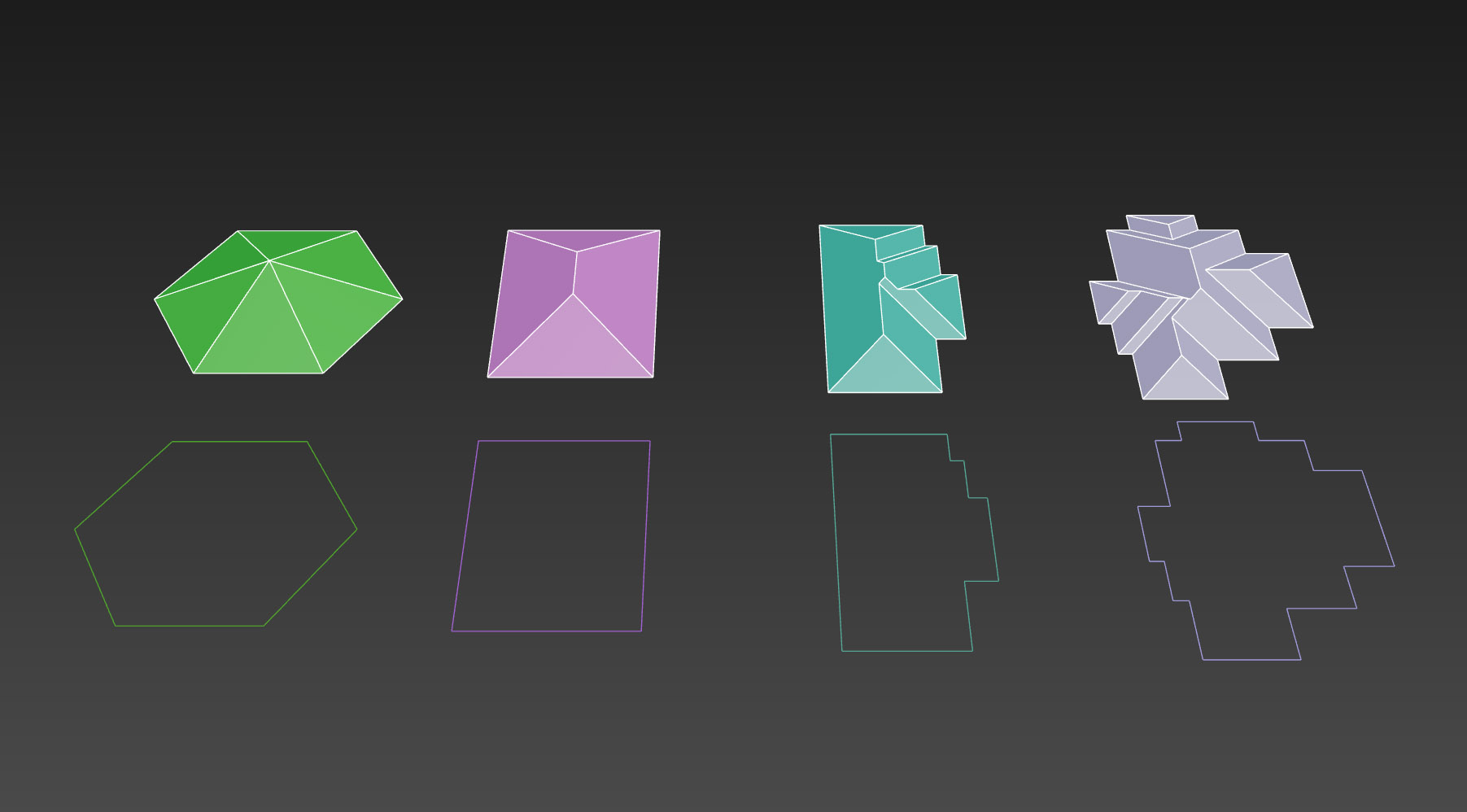

MW RoofGen - Roof geometry generated from various spline outlines
Geometry

Any closed spline

RoofGen accepts any closed spline: simple rectangles, L-shapes, freeform outlines. It resolves the ridge intersections for each shape automatically, and can build roofs for several selected splines in one pass.

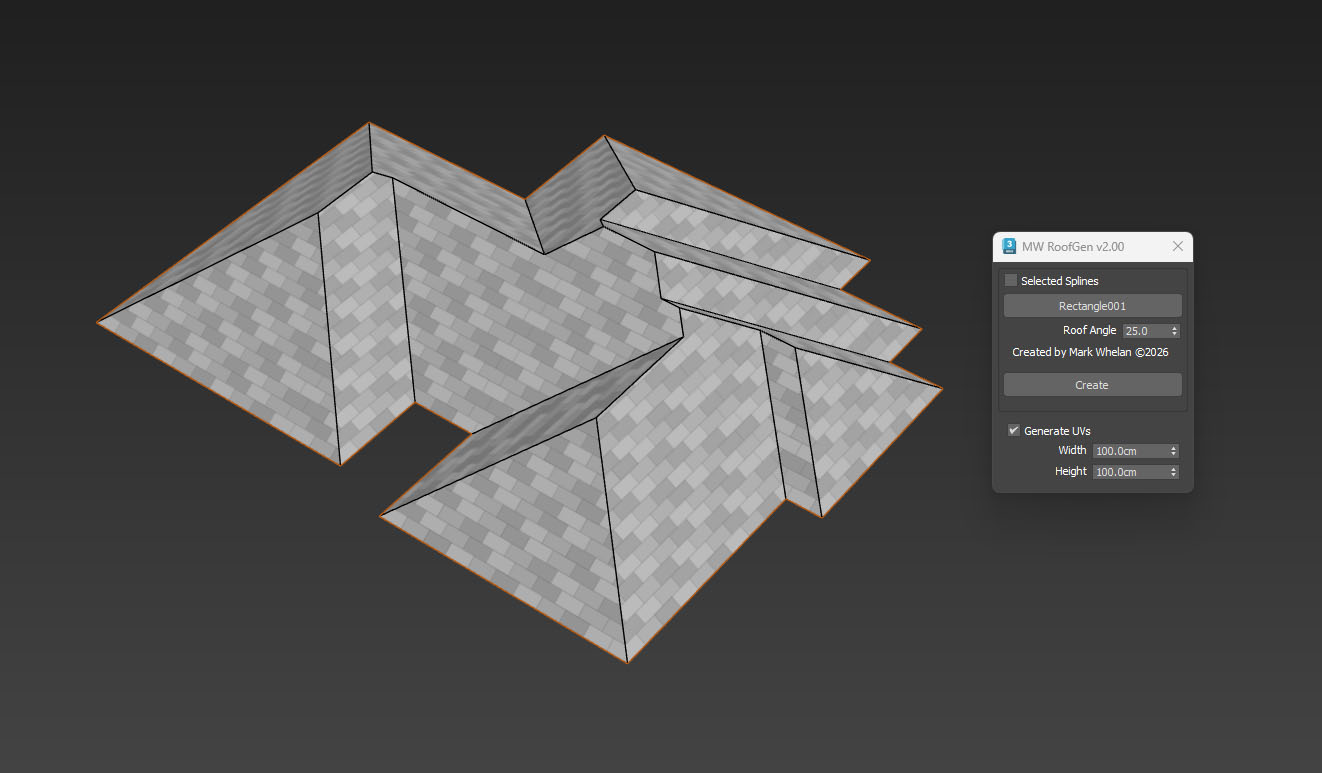

MW RoofGen - Grounded slope UV mapping on roof faces
UVs

Grounded slope UVs

Each roof face is mapped on its own, with its bottom edge locked to V=0 and U=0 at the edge start. Coordinates follow the true slope, so tile textures keep their proportions at any pitch. Width and height inputs set the real-world tile size.

Get MW RoofGen 2

Free to download. Pairs well with the roofing shaders in MW Tiles v2.
